OpenVLA
Stanford/Berkeley's 7B Open-Source Vision-Language-Action Model
OpenVLA
Home > Models > OpenVLA
Key Significance
- Democratization of VLA Research: First large-scale open-source VLA (7B parameters) - complete release of checkpoints, code, and training pipeline
- Efficient Performance: Achieves comparable or better performance than 55B RT-2-X with 7B, proving efficiency relative to model size
- Consumer GPU Fine-tuning: LoRA trains only 1.4% of total parameters, enabling fine-tuning on general GPUs
- Versatility: Only model showing 50%+ success rate across all tested tasks
- Prismatic VLM Based: Strong visual understanding with SigLIP + DinoV2 dual vision encoder
- Result of Academic Collaboration: Jointly developed by 5 institutions - Stanford, UC Berkeley, TRI, Google DeepMind, MIT
- Starting Point for Open-Source VLA Ecosystem: Foundation for subsequent lightweight open-source VLA research like SmolVLA, MiniVLA

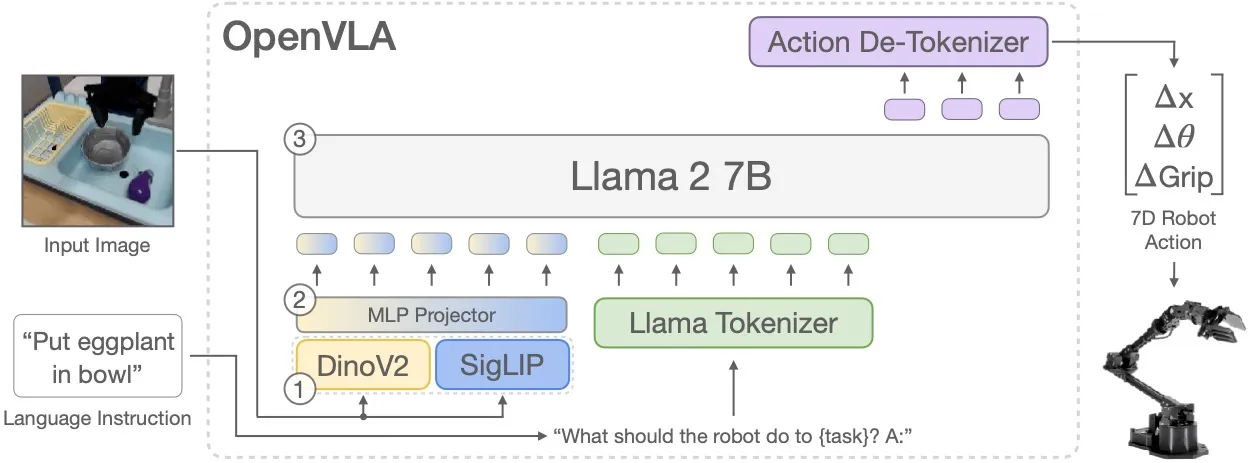

OpenVLA Architecture: Based on Prismatic VLM (SigLIP + DinoV2) + Llama 2 7B
Overview
OpenVLA is a 7B parameter open-source VLA model jointly developed by Stanford, UC Berkeley, Toyota Research Institute, Google DeepMind, and MIT. Smaller than RT-2-X (55B) but shows similar or better performance, and can be fine-tuned on consumer GPUs.
Architecture
OpenVLA is built on Prismatic-7B VLM.
+-------------------------------------------------------------+
| OpenVLA Architecture |
+-------------------------------------------------------------+
| |
| +-------------+ +-------------+ |
| | SigLIP | | DinoV2 | Visual Encoder |
| | Backbone | | Backbone | (Fused) |
| +------+------+ +------+------+ |
| | | |
| +-------+--------+ |
| v |
| +-------------+ |
| | Projector | Image -> LLM space |
| +------+------+ |
| v |
| +-------------------------+ |
| | Llama 2 7B | Language Backbone |
| | (Action Prediction) | |
| +-----------+-------------+ |
| v |
| Tokenized Actions -> Continuous Robot Commands |
+-------------------------------------------------------------+
| Component | Description |
|---|
| Visual Encoder | SigLIP + DinoV2 (fused) |
| Projector | Visual embeddings → LLM input space |
| LLM Backbone | Llama 2 7B |
| Output | Tokenized actions → Continuous robot commands |
Training
| Item | Details |
|---|
| Dataset | Open X-Embodiment |
| Episodes | 970K |
| Hardware | 64x A100 GPU |
| Training Period | 15 days |
| Data Sources | 21 institutions, 22 robot forms |
Zero-Shot Evaluation
| Comparison | Result |
|---|
| vs RT-1-X | Superior (WidowX, Google Robot) |
| vs Octo | Superior (WidowX, Google Robot) |
| vs RT-2-X (55B) | Comparable or better |
Key: 7B model matches or outperforms 55B model
After Fine-tuning
- Superior to Octo on most Franka-Tabletop and DROID tasks
- 50%+ success rate on all tested tasks (unique)
- Outperforms Diffusion Policy on multi-object and language-based tasks
Limitations
- RT-2-X performs better on difficult semantic generalization (internet concepts)
- Reason: RT-2-X’s larger pretraining data and co-fine-tuning strategy
Fine-tuning
One of OpenVLA’s key strengths is efficient fine-tuning.
LoRA (Low-Rank Adaptation)
| Item | Details |
|---|
| Fine-tuning Parameters | Only 1.4% of total |
| Performance | Equivalent to full fine-tuning |
| Hardware | Consumer GPU capable |
Quantization
- No performance degradation after quantization
- Enables efficient serving
Comparison with Other Models
| Model | Parameters | Open-Source | Features |
|---|
| OpenVLA | 7B | O | VLM-based, strong at language instructions |
| Octo | 93M | O | Diffusion-based, fast fine-tuning |
| RT-2-X | 55B | X | Largest model, strong semantic generalization |
| RT-1-X | ~35M | O | Lightweight, basic performance |
Key Advantages
| Feature | Description |
|---|
| Performance | 7B model matching 55B model |
| Efficiency | LoRA trains only 1.4% of parameters |
| Versatility | 50%+ success rate on all tasks |
| Accessibility | Consumer GPU fine-tuning/serving |
| Open-Source | Complete release of checkpoints and code |
Variants
| Model | Description |
|---|
| OpenVLA-7B | Base model |
| MiniVLA | Lightweight version (Stanford ILIAD) |
